Typical splice loss
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss
>60db
Fiber cleaved length
10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program
40 groups
Operate mode
Manual, Automatic
Auto-heating
Available
Typical splicing time
8 seconds
Tube heating time
26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification
250X(X or Y view), 125X(X and Y view)
Viewing method and display
2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result
4000 results
Loss evaluation
Tension test
1.8-2.2N
Interface
GUI menu interface, easier operation
Battery capacity
5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery
Power supply
Adaptor, input: AC100-240V(50/60HZ)
Electrode life
More than 4000 ARC discharges, can be replaced conveniently
Terminals
USB 2.0 port, for uploading splice results and upgrading software
Operating condition
Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s
Dimension
149mm(L)x120mm(W)x127mm(H)
Weight
1.9kg including battery
Package
Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg

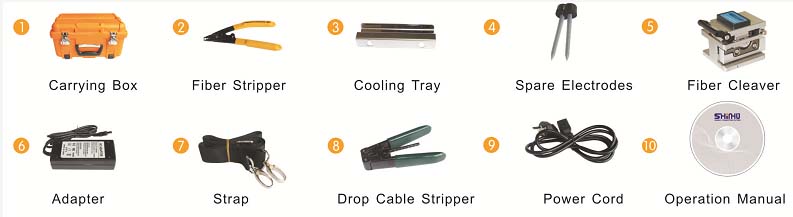

Standard Package
