The Agilent 81634A is a single element high sensitivity optical sensor plug-in module that fits the 8163, 8164 and 8166 multichannel mainframe series. The Agilent HP 81634A InGaAs sensor element covers a wavelength range of 800 to 1650nm and offers a dynamic range of +10 to -110dBm. Many different connectors are available for the 81634A power meter interface.

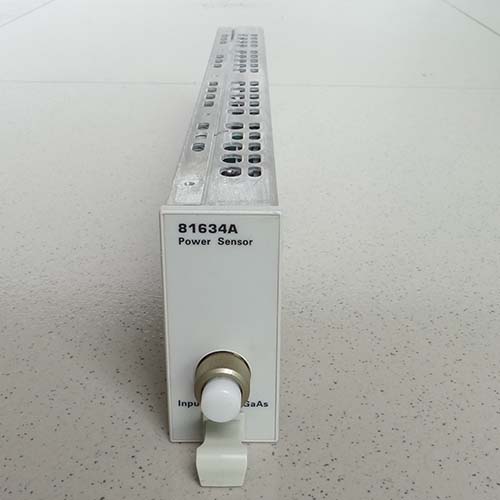

Agilent 81634A InGaAs Optical Power Sensor
Specifications at a glance of the 81634A:
- Sensor Type: InGaAs
- Wavelength Range: 800 to 1700 nm
- Power Range: -110 to +10 dBm
- Uncertainty: <±2.5% (1000 nm to 1630 nm)
Additional Information:
Linearity: (CW +10 dBm to -70 dBm) <±0.015 dB ±2 pW
