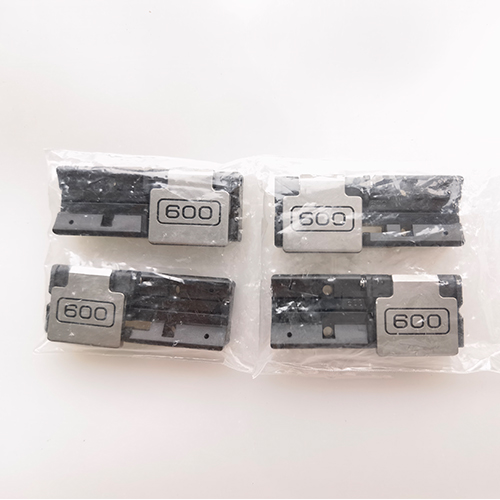

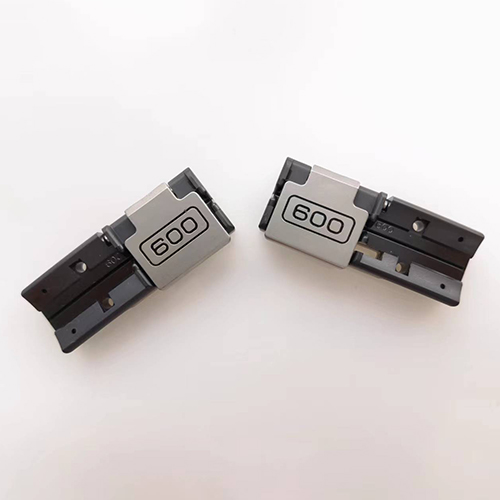

Fujikura FH-100-600 Fiber Holder

Manufacturer:

Fujikura

Model:

FH-100-600

Condition:

New

Availability:

2 pairs

Price:

$550.00

Qty:

Description:

1 pair.

Feature

Fiber holder FH-100 series are for Fujikura Fusion Splicer FSM-100 series and FSM-45F/PM series. The FH-100 series has various models depending on coating diameter from 55mm to 1000mm, and custom one from over 1000mm may be available.

Specification
Applicable coating diameter		55μm to 1000μm
Type variation		In accordance with coating diameter See VARIATION table on the right
Fiber holding		Magnetic clamping
Fiber Holder placing onto splicer		Guide-pin system with two pins per one side of Fiber Holder
Dimensions		42L x 16W x 7H (mm)
Weigth		20g for 1 pair
Material		Base plate: Heat-hardening plastic Lid: Iron-Nickel alloy
Use for	Fusion Splicers	FSM-40F,FSM-40PM,FSM-45F,FSM-45PM,FSM-45LDF,FSM-45PM-LDF,FSM-100M,FSM-100P,FSM-100M+,FSM-100P+
	Fiber Cleavers	CT-32 for 125mm cladding fibers CT-38 for 80mm cladding fibers CT-100 for 80 to 250mm cladding fibers
	Jacket Strippers	HJS-02 for 250μm to 400μm fiber JS-02-900 for 900μm fiber HTS-12 94μm to 1000μm fiber

Details

VARIATION

ITEM

Model

Coating dia. (mm)

FH-100-XXX
FH-100-XXX-EV

FH-100-060

55 to 71

FH-100-100

94 to 117

FH-100-125

118 to 139

FH-100-150

140 to 169

FH-100-180

170 to 199

FH-100-210

200 to 239

FH-100-250

240 to 289

FH-100-300

290 to 339

FH-100-350

340 to 389

FH-100-400

390 to 489

FH-100-500

490 to 589

FH-100-600

590 to 689

FH-100-700

690 to 789

FH-100-800

790 to 889

FH-100-900

890 to 1000

FH-100-***

1000 to (max)2000 Contact with us.

-EV is the optical fiber clamp corresponding to the end face observation system
