PM Stripper For 80 and 125 mm fiber, and both short and long strip lengths
EFC-11/PM Fiber cleaver* Cleaves with a diamond blade with a life of greater than
18,000-20,000 cleaves
EUC 12 Ultrasonic cleaner* Cleans with an ultrasonic frequency of 51-55 Hz
Vacuum grooves For PM fiber with cladding 80-125 mm (125-400 mm coating)
Fiber fixtures For PM fiber with coating 400 and 900 mm
PM Heat shrink oven Plug-in device for all sorts of heat-shrinkable sleeves
for PM fiber

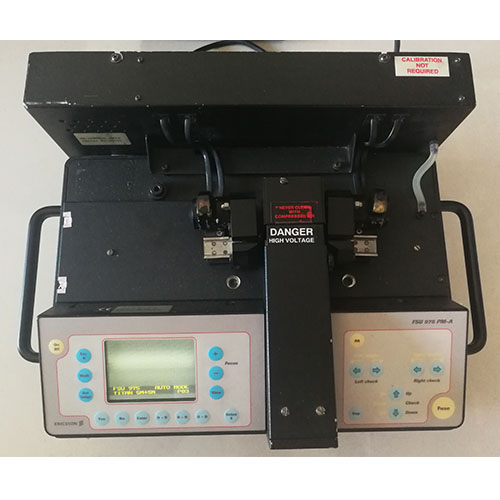

FSU 975PM-A An all-purpose fusion splicer* specially equipped with
rotators for precise alignment of PM fibers
Alignment methods Azithumal: POL method
Axial: Hot core alignment with real time control
Extinction ratio 32.2 dB (Mean, STD 2.73), up to 40 dB for certain types
Splice losses Typical values 0.02 dB
Power supply 90 - 264 V AC, 50 - 60 Hz
13.2 V DC
Monitor 3. high resolution LCD monitor
Video output 1 V p-p positive, 75 Ohms/CCIR
Operating environment 0 to 40 oC. 0 - 95% RH (non-condensing)
Size/Weight 37 x 36.2 x 18 cm (WxDxH)
8.15 kg (power supply and other accessories not included)
Carrying case Rugged cabin-sized case with space for accessories
54.5 x 42.5 x 25.5 cm (WxDxH
