Description

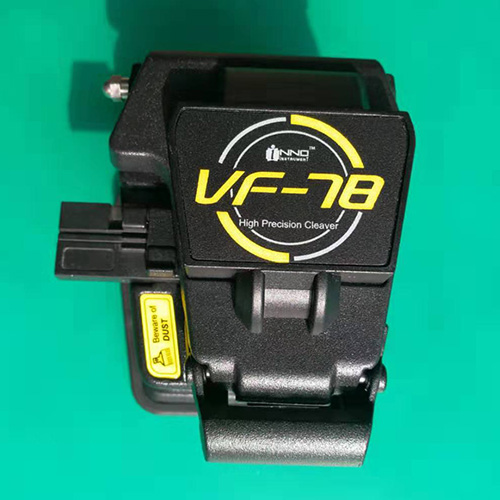

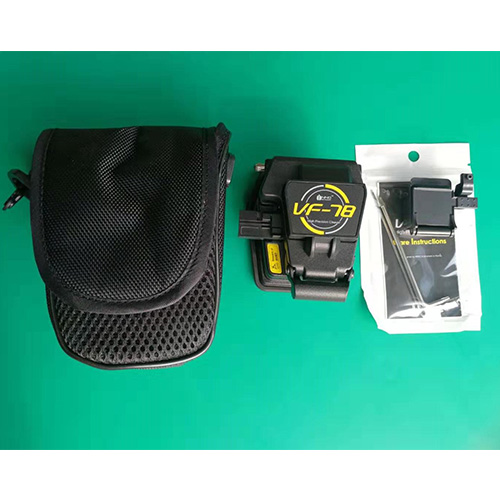

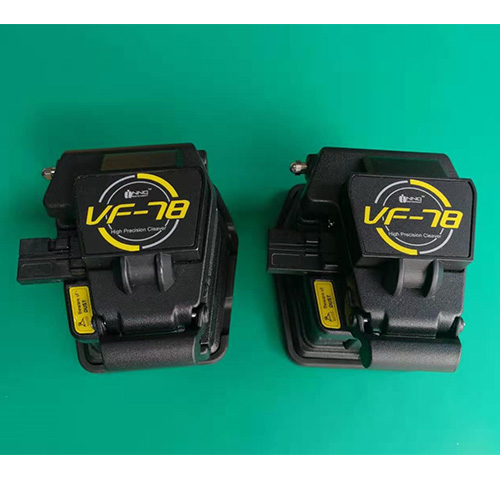

VF-78 High Precision Cleaver is an instrument for high precision fiber cutting. It is compact and light, making it ideal for both single and 250μm adaptable ribbon fiber cleaving (2-12 core). The blade provides over 48,000 cleaves by easy and simple blade position selection. Additionally, it has an automatic collector for fiber shards and off cuts.
Features
● Easy-step operation to complete the cleaving and collection of waste fiber shards automatically.
● Convenient and quick to operate. Either hand-held or on table/worktop surfaces
● Very easy fiber setting and placing and, no need for blade height adjustment, therefore improving work efficiency and low maintenance cost.
● Smart design of pressure pads preventing the fiber from damage by the return of the blade carriage
● Made for magnesium alloy materials, giving high strength and stability. Small, compact size and light weight.
Specifications:
|
Dimension |
81W*72D*62H(mm) |
|
Weight |
350g |
|
Type |
0.25~0.9mm(Single fiber) |
|
Fiber Diameter |
0.125mm |
|
Length |
6~20mm(Single fiber) |
|
Cleaver Angle |
0.5 Degrees with single fiber |
|
Life of Blade |
Total 48,000 cleaves (1,000 fiber for 1 step * total 16 steps * 3 heights) |
|
Operation Steps |
2 |
|
Reclaim Function |
Blade pushback |
