Model
|

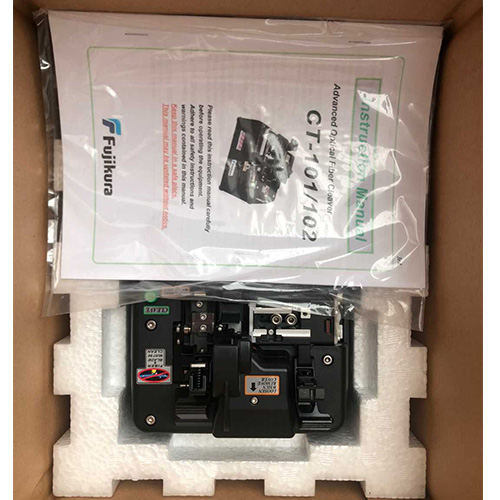

CT-101
|
CT-102
|
Applicable fibers
|
Conventional silica single optical fiber
Cladding dia. : 0.08 to 0.250 mm
Coating dia. : 0.16 to 2.00 mm
|
Cleave length
|
3 to 40 mm
|
Fiber Holder
|
FH-100 series
|
FH-60 series
|
Performance of the cleaving angle
|
Typical 0.30 degrees.(125 μm SMF)
|
Range of the angle cleaving
|
0 to 15 degrees(adjustable)
|
Blade
|
Material : Diamond
Life : 20,000 fibers(1,000 fibers × 20 points)(125 μm SMF)
|
Dimensions
|
140 W × 110 D × 95 H [mm]
|
Weight
|
900 g or less(batteries optional)
|
Power source
|
AC : 100 to 240 V(50 / 60 Hz)with ADC-16
DC : “AA” size battery 4pcs.(number of cleaving 1,000 fibers)
|
Operating condition
|
Temperature : 0 to 40 degC / Humidity : 0 to 95% RH(non-dew)
|
Storage condition
|
Temperature : -40 to 80 degC / Humidity : 0 to 95% RH(non-dew)
|
