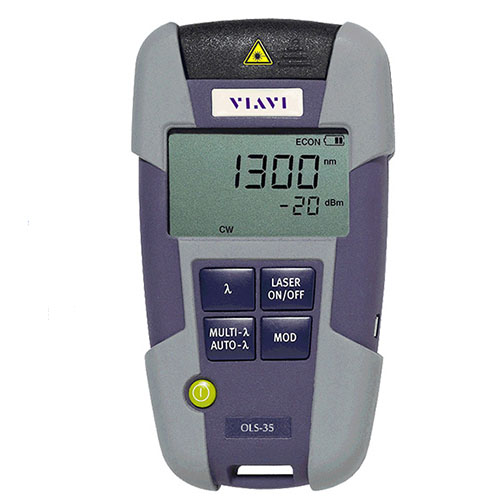

----Viavi OLS-35 Optical Light Sources

Viavi OLS-35 Optical Light Sources

Manufacturer:

Viavi

Model:

OLS-35

Condition:

New

Availability:

Yes

Price:

$1,300.00

Qty:

Description:

Feature

VIAVI SmartPocket OLS-34/35/36/37/38 Optical Light Sources

The VIAVI OLS-3x series consists of small and rugged optical light sources for quick, easy, and convenient field insertion loss measurement and continuity checks.

Pocket-Sized Light Sources for All Kind of Applications

SmartPocket™ optical light sources (OLS-3x) are ideal tools to complement the OLP-3x optical power meters for insertion loss and continuity testing in both multimode and single-mode optical fiber networks. They offer a dedicated and cost-optimized solution for testing and troubleshooting optical fibers in the field.

All VIAVI sources are equipped with Auto- λ and Multi- λ functions compatible with any Viavi power meter. This one button operation provides a quick, simple, and error-free testing solution, which makes SmartPocket sources the ideal tools for daily field testing.

• The OLS-34 covers LAN/WAN access and enterprise multimode networks with 850/1300 nm

• The OLS-35 covers all standard singlemode telecommunication network applications with 1310/1550 nm

• The OLS-36 quad-wavelength solution covers both multimode and single-mode wavelengths (850/1300/1310/1550 nm)

• The OLS-37 is a singlemode source with 3 wavelengths on one port for testing FTTH/PON networks at 1310/1550 nm and 1490 nm

•The OLS-38 is a singlemode source with 3 wavelengths on one port for testing networks at 1310/1550 nm and 1625 nm

Key Benefits：

• Cost-effective, rugged, and compact optical light sources

• Switchable optical adapter versions available for maximum flexibility

• Auto λ and TwinTest transmission modes

• 3-year calibration

• Combines up to 4 wavelengths in one instrument (SM+MM)

Applications：

• Link insertion loss measurements and continuity checks

• Enterprise/LAN networks with 850/1300 nm multimode wavelengths capability

• Access and metro (LAN/WAN) networks with multimode and single-mode testing combinations

• Standard single-mode wavelengths for any telecom, CATV, and military application

Details

Technical Specifications

	OLS-34 Multimode Light Source	OLS-35/37/38 Single-Mode Light Source	OLS-36 Quad Light Source
Source type	LED	Laser	LED/Laser
Laser safety	IEC 60825-1: 2003 IEC 60825-1: 2007	IEC 60825-1: 2007	IEC 60825-1: 2003 IEC 60825-1: 2007
Fiber type	MM (50/125 μm)	SM (9/125 μm)	MM (50/125 µm)/SM (9/125 µm)
Optical interface type	PC/1 single port for all wavelengths	PC/1 single port for all wavelengths	PC/1 port for MM and 1 port for SM
Optical interface connectors	Fixed: ST Switchable: LC, FC, SC, ST	Fixed: LC Switchable SC, FC, ST, LC	Switchable: SC, FC, ST, LC
Central wavelength	850 nm (±20 nm) 1300 nm (–20 nm/+40 nm)	1310 nm (±20 nm) 1550 nm (±20 nm) 1490 nm (±3 nm) for OLS-37 only 1625 nm (±3 nm ) for OLS-38 only	850 (±20 nm) 1300 (–20 nm/+40 nm) 1310 (±20 nm) 1550 (±20 nm)
Spectral width1	<170 nm	<5 nm	<170 nm/<5 nm
Output power	–22 dBm2	–7 dBm	–22 dBm2/–7 dBm
Stability short term (15 min)3	±0.02 dB	±0.02 dB	±0.02 dB
Stability long term (8h)3	±0.05 dB	±0.05 dB	±0.05 dB
Tone generation	270 Hz, 1 kHz, 2 kHz	270 Hz, 1 kHz, 2 kHz	270 Hz, 1 kHz, 2 kHz
Auto λ mode4	Yes	Yes	Yes
Multi λ mode4	Yes (2 λs)	Yes (2 or 3 λs)	Yes (4 λs)
Launch conditions		CPR capability for MM launch conditions	CPR capability for MM

General Specifications

Power Supply
Dry batteries	2 AA 1.5 V
Rechargeable batteries	2 AA NiMH 1.2 V
AC operation	Via micro USB and SNT-505
Battery life (CW)5	30 h (MM)/80 h (SM) Automatic power-off after 20 minutes
Environmental Conditions
EMI/ESD	CE compliance
Electrical safety	EN 61010-1: 2002
Recommended calibration interval	3 years
Operating temperature	–10 to +60°C/+14 to +140°F
Storage temperature	–40 to +70°C/–40 to +158°F
Dimensions (H x W x D)	30 x 80 x 150 mm/1.2 x 3.1 x 5.9 in
Weight	200 g/0.45 lb

Ordering Information

Description	Part Number
OLS-34 LED source 850/1300 nm, MM, SC and FC switchable adapters	2303/01
OLS-35 laser source 1310/1550 nm, SM, SC and FC switchable adapters	2303/11
OLS-35 laser source 1310/1550 nm, SM, fixed LC/PC adapter	2303/15
OLS-36 quad source 850/1300/1310/1550 nm, SM, MM, SC and FC switchable adapters	2303/21
OLS-37 laser source 1310/1490/1550 nm, SM, SC and FC switchable adapters	2303/41
OLS-38 laser source 1310/1550/1625 nm, SM, SC and FC switchable adapters	2303/51

Each product includes:

• 2 AA alkaline batteries

• Neck strap

• Belt bag

• SC switchable adapter, mounted on instrument

• FC switchable adapter as spare part

Description	Part Number
Optional Accessories
Fiber Cleaning Consumables Kit	FCR-CLN-01
NiMH rechargeable batteries, mignon AA, 1.2 V (2 batteries required)	2237/90.02
SNT-505; universal AC power adapter, micro USB connector	2302/90.01
ST switchable adapter	2155/00.32
FC switchable adapter	2155/00.05
SC switchable adapter	2155/00.06
LC switchable adapter	2155/00.07
