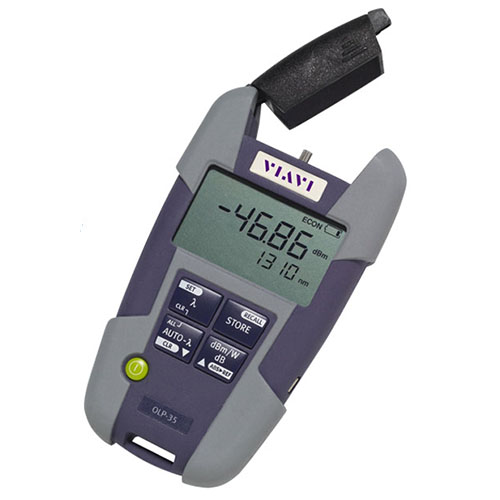

Viavi Solutions® OLP-3x optical power meters quickly, easily, and conveniently measure power levels and loss in fiber networks.
Pocket-Sized Power Meters for All Kinds of Applications
Easy-to-use for technicians at any skill level, SmartPocket optical power meters complement
Viavi optical light sources for insertion loss and continuity testing in both multimode and
single-mode networks. They offer a dedicated and cost-optimized solution for testing and
troubleshooting fiber in the field with:
• Intuitive, one-button operation
• Automatic wavelength recognition
• A large, sharp display that simultaneously shows relevant results and settings
The small and rugged OLP-3x also includes unprecedented data storage capacity and
downloads results to a PC with a micro USB port.
• The OLP-__ is optimized for LAN/WAN access and enterprise networks and multimode or singlemode applications
• The OLP-__ is optimized for standard telecommunication network applications
• The OLP-__ is a higher-power (+__ dBm) version for CATV (with analog RF transmission) or amplified DWDM systems applications
Key Benefits:
• Cost-effective, rugged high-performance solution
• 3-year recalibration period
• 1 nm incremental universal wavelength settings
• Universal optical interface supports all 2.5_mm with an option to support 1.25_mm connectors
• Auto wavelength detection and TwinTest mode
• Internal data storage and PC download capability
• Quick start operation eliminates warm-up
Applications:
• Measuring optical power levels and link insertion loss
• Enterprise LAN networks with 850/1300 nm multimode wavelengths capability
• Test access and metro (LAN/WAN) networks in multimode and single-mode
• Standard and high-power level tests for use in telecom, CATV, and military applications
|
OLP-34 |
OLP-35 |
OLP-38 |
|
Detector type |
InGaAs |
InGaAs |
Filtered InGaAs |
|
Optical interface/connectors |
Universal 2.5 mm/1.25 mm1 |
Universal 2.5 mm/1.25 mm1 |
Universal 2.5 mm/1.25 mm1 |
|
Wavelength range |
780 to 1600 nm |
780 to 1650 nm |
780 to 1650 nm |
|
Wavelength settings |
780 to 1600 nm, step size 1 nm |
780 to 1650 nm, step size 1 nm |
780 to 1650 nm, step size 1 nm |
|
Programmable wavelengths |
5 presets (customized) |
5 presets (customized) |
5 presets (customized) |
|
Calibrated wavelengths |
850, 980, 1310, 1490, 1550 nm |
850, 980, 1310, 1490, 1550, 1625 nm |
850, 980, 1310, 1490, 1550, 1625 nm |
|
Power range |
–60 to +5 dBm |
–65 to +10 dBm |
–50 to +26 dBm |
|
Display range |
–60 to +10 dBm |
–65 to +13 dBm |
–50 to +26 dBm |
|
Max. input power |
+13 dBm |
+16 dBm |
+27 dBm |
|
Measurement units |
dB/dBm/W |
dB/dBm/W |
dB/dBm/W |
|
Intrinsic uncertainty2 |
±0.2 dB (±5%) |
±0.2 dB (±5%) |
±0.2 dB (±5%) |
|
Linearity3 |
±0.06 dB (–50 to +5 dBm) |
±0.06 dB (–50 to +5 dBm) |
±0.06 dB (–32 to +20 dBm) |
|
Tone detection |
270 Hz, 1 kHz, 2 kHz |
270 Hz, 1 kHz, 2 kHz |
270 Hz, 1 kHz, 2 kHz |
|
Auto λ mode4 |
Yes |
Yes |
Yes |
|
Multi λ mode4 |
TwinTest/serial TripleTest |
TwinTest/serial TripleTest |
TwinTest/serial TripleTest |
