The affordable, easy-to-use handheld tester for techs at any level

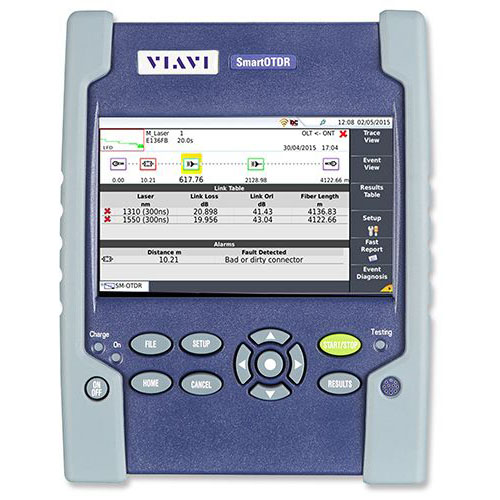

The lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks—with a tailored OTDR interface and automatic analysis that any technician can understand.
With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
Key Benefits
● Combines all essential fiber tests in one handheld with visual fault locator (VFL),
optical power meter (OPM), and P5000i microscope options
● Simplifies OTDR analysis with Smart Link Mapper (SLM) option
● Upgrades easily in the field
● Automates testing with objective, pass/fail results
● Enhances productivity anywhere with powerful network connectivity options
Key Features
● Light, compact, hands-free design includes 5” high-visibility outdoor touch screen
● Integrated CW light source
● Automated fiber inspection and macrobend detection with pass/fail analysis software
● 3G/4G connectivity via USB, Bluetooth®/ WiFi options
● 1-year warranty
● All-day battery life
Specifications (typical at 25°C)
|
General |
|
Display |
5-inch capacitive color touch screen (12.5 cm) |
|
Display resolution |
800 x 480 W VGA |
|
Interfaces |
2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available) |
|
Storage |
10,000 OTDR traces typical |
|
Battery |
Rechargeable Lithium-polymer battery, up to 20 hours of operation1 |
|
Power supply |
AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W |
|
Electrical safety |
EN60950 compliant |
|
Size (HxWxD) |
175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in) |
|
Weight (battery included) |
Approx. 0.9 kg (1.98 lb) |
|
Operating/storage temperature |
Operating: –20 to +50°C; storage: –20 to +60°C |
|
Humidity (noncondensing) |
95% |
|
OTDR |
|
Laser safety class (21 CFR) |
Class 1 |
|
Number of data points |
Up to 256,000 data points |
|
Display range |
0.1 km to 260 km |
|
Sampling resolution |
4 cm |
|
Distance accuracy |
(±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties |
|
|
SmartOTDR 100A |
SmartOTDR 100B |
|
Central Wavelength |
1310/1550/1650nm ±20nm |
1310/1550/1650nm ±20nm |
|
Dynamic Range |
37/35/32 dB |
40/40/41 dB |
|
Pulse widths |
5 ns to 20 μs |
3 ns to 20 μs |
|
Event dead zone |
1.35m |
0.9m |
|
Attenuation dead zone |
4m |
2.5m |
|
Splitter attenuation dead zone |
Not available |
45 m after 15 dB splitter loss |
|
CW Light Source |
|
Output power level6 |
–3.5 dBm |
|
Stability long term (8 hr)7 |
±0.05 dB |
|
Built-in Power Meter (optional) |
|
Operating mode |
270, 330, 1 kHz, 2 kHz, and TWINTest |
|
Power level range |
0 to –55 dBm |
|
Calibrated wavelengths |
1310, 1490, 1550, 1625, and 1650 nm |
|
Measurement accuracy8 |
±0.5 dB |
|
Built-in Visual Fault Locator (optional) |
|
Wavelength |
650 nm |
|
Emission mode |
CW, 1 Hz |
|
Laser class |
Class 2 per EN60825-1 and FDA21 CFR Part 1040.10 standards |
|
Built-in PON/XG-PON Power Meter (E118FA65PPM version) |
|
Wavelengths |
1490/1550 nm; 1490/1578 nm |
|
Measurement ranges |
1490 nm: –35 to +5 dB m ; 1 550/1578 nm: –35 to +23 dBm |
|
Measurement accuracy |
±0.5 dB |
