Home Visual Fault Locator >> VFL-850 Series Visual Fault Locator 10 mW
Visual Fault Locator

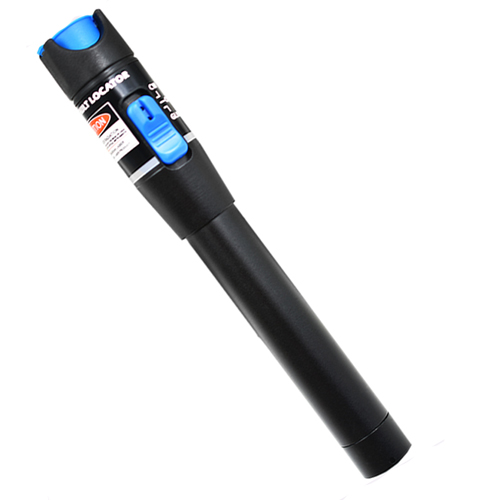

VFL-850 Series Visual Fault Locator 10 mW
Manufacturer:
  Opticseq
Model:
  VFL-850
Condition:
  New
Availability:
  1000 pcs
Price:
  $25.00
Qty:
Description:

   Feature
VFL-850 Visual Fault Locator—Pen Size
1. Summary
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
2. Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
3. Specifications

Wavelength
650nm±10nm
Light source
FP-LD laser
Output power
1mw,10mw,20mw,25mW,30mW (optional)
Connector
2.5mmuniversal adapter
Working mode
CW or 2Hz modulation
Operating temperature
-10~+60 °C
Storage temperature
-25~+70 °C
Power
2pcs AA battery
Working hours
≥10
Weight
160g
Dimension (mm)
175*26*26
   Details

4. Operation
