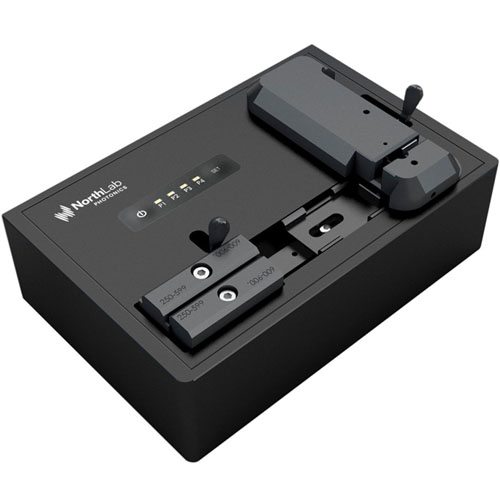

NorthLab CL-01-01000 ProCleave LD– Large Diameter Fiber Cleaver
The NorthLab ProCleave LD is a fiber cleaver for large diame- ter fibers up to 550 μm. The ProCleave LD is specifically de- signed for use in production lines where ease-of-use, process speed and a high production yield is crucial. The cleaver is at the same time well suited for R&D environments.
ProCleave LD generates very flat end-faces and low cleave angles (typical <0.5°) with a high repeatability . The cleavers small size and low weight makes it ideal for a work bench, to be used side-by-side with fusion splicers and other prepara- tion tools.
The ProCleave LD can facilitate fiber holders from different brands of fusion splicers, such as Fitel, Fujikura and 3SAE. The cleaver can also be operated with bare fibers without use of fiber holders. The simple and robust design ensures low- maintenance and a trouble-free use.
The ProCleave LD has an integrated “back stop” which pro- vides enhanced cleave performance for structured and dou- ble cladding fibers.
Key Features:
• Compact, low-maintenance bench top design
• For fiber claddings from 125 to 550 μm and coatings up to 900 μm
• Low cleave angles with flat end faces
• Can be powered with battery or external power supply
• Available platforms that support Fujikura, Fitel, 3SAE, or use without fiber holders.
Technical Specifications
Supported fiber cladding |
125 - 550 μm |
Supported fiber coating |
250 - 900 μm |
Dimensions |
150(W) x 100(D) x 60(H) mm 150(W) x 100(D) x 80(H) mm (incl. Lever) |
Weight |
1,1 Kg |
Power Source |
Battery* (2xAA) or external power supply (100 - 240 V AC, 50/60 Hz) |
* Battery not Included in delivery
Product |
Part # |
Qty |
NorthLab ProCleave LD |
CL-01-01000 |
1 |

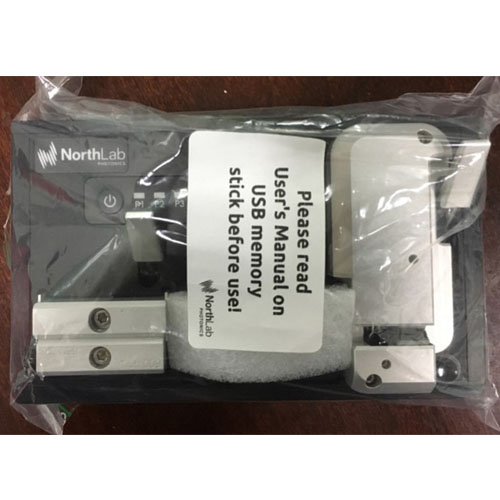

Standard Package |
Power Supply |
CL-90-90002 |
1 |
Fitel/Fujikura Fiber Holder Platform |
CL-01-01001 |
1 |
Tool Kit |
CL-01-01004 |
1 |
User’s Manual (pdf) |
N/A |
1 |
Optional Components |
Bare Fiber Adaptor |
CL-01-01002 |
|
Spare Diamond Blade |
CL-90-90001 |
|
* Recommended for bare fiber usage. To be placed in the Fitel/Fujikura Fiber Holder Platform (CL-01-01001).
