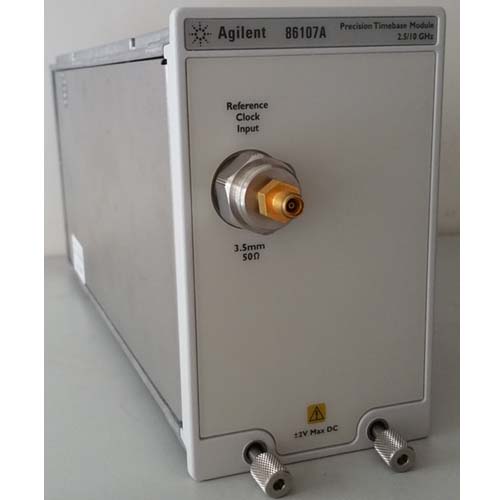

Keysight-Agilent 86107A-010 Precision Timebase Reference Module

The 86107A represents one of the most significant improvements in wide-bandwidth sampling oscilloscopes in over a decade. Jitter performance has been reduced by almost an order of magnitude to less than 200 fs RMS. Timebase resolution has also been improved from 10 ps/division to 2 ps/division. Because the 86107A improves timebase jitter and linearity by more than a factor of five it provides extremely accurate views of 40 Gb/s waveforms.

Input signal

Type: synchronous clock, square wave to sine wave shape

Characteristic levels: 0.2 - 1.5Vpp

Trigger range: 2 to 48 GHz (depends on options)

Electrical Input: 3.5 mm male (2.4 mm male for frequencies > 25 GHz BW)

Timebase Jitter

< 200 fs rms (for frequencies > 4 GHz)

< 280 fs rms (for frequencies < 4 GHz)

Options

Option 010: 2.5 GHz and 10 GHz clock input capability

Option 020: 10 GHz and 20 GHz clock input capability

Option 021: DC blocking capacitor, 45 MHz - 26.5 GHz

Option 040: 10, 20 and 40 GHz clock input capability

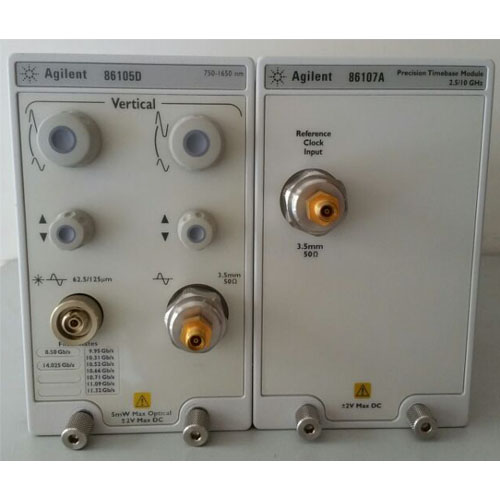

Compatibility: 86100A/B/C/D Infiniium DCA/DCA-J Mainframes
