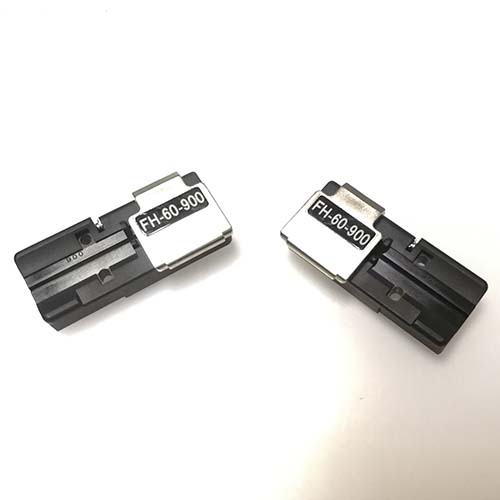

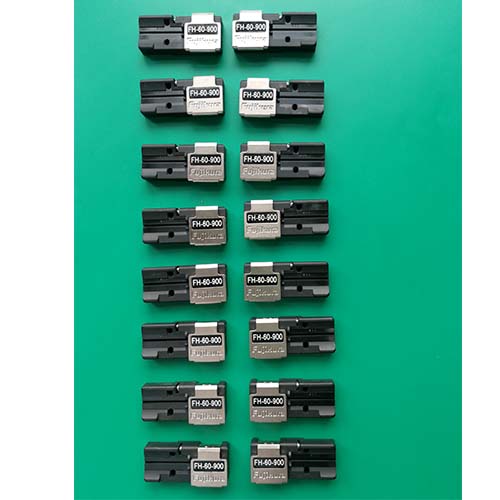

Fiber Holder FH-60 series The FH-60 series single fiber holder and FH-FC series cable fiber holder are exclusively used for Fujikura 70 series, 19 series, 12 series , and former Fujikura Splicers.
The Fujikura Fiber Holder System is developed to provide appropriate splicing work for several kinds of fibers,250um fiber,900um fiber, loose tube fiber, drop cable, 3mm cable or 2mm cable.
The FH-60 series and FH-FC-30 are supplied with a pair, for the left and the right respectively.
As for fiber holder for ribbon fiber, please see FH-50 series datasheet.
SPECIFICATION
FH-60-250&900
FH-60-LT900.FH-FC-20&30
Applicable number of fiber
Single
Type variation
In accordance with number of fiber Please see VARIATION table below
Fiber holding
Magnetic clamping
Fiber Holder placing onto splicer
Guide-pin system with two pins per one side of Fiber Holder
Dimensions
38Lx 16W x 7H [mm]
41L x 18W x 8H [mm]
Weight
20g for 1pair
22g for 1pair
Material
Base plate: Heat-hardening plastic / Lid:Iron-Nickel alloy
Use for
Arc Fusion Splicer
Ribbon
70R,70R+,FSM-60R,FSM-50R,19R,19R+,FSM-18R,FSM-17R,12R
80S,80C,70S+,66S,62C,62S+,61S,48S+,43S,41S,38S, 34S,33S,31S,27S+,22S,21S,19S,19S+,FSM-18S,FSM-17S,12S
Fiber Cleaver
CT-05,CT-06,CT08,CT16,CT-20,CT-22,CT-30,CT-32,CT-38,CT50, CT52,CT58,CT-102
Jacket Stripper
HJS-02, HJS-03
VARIATION
Model
FH-60-250
FH-60-900
FH-60-LT900
FH-60-DC250
FH-FC-30
FH-FC-20
Fiber
Single (250μm)
Single (900μm)
Loose Tube Single Fiber
(900μm)
Drop Cable Single(250um)
3mm Cable
2mm Cable(Left only )
Note) The FH-60 series can be used for Fujikura fomer models of splicers or fiber cleavers.
Specifications and descriptions are subject to change without prior notice.
