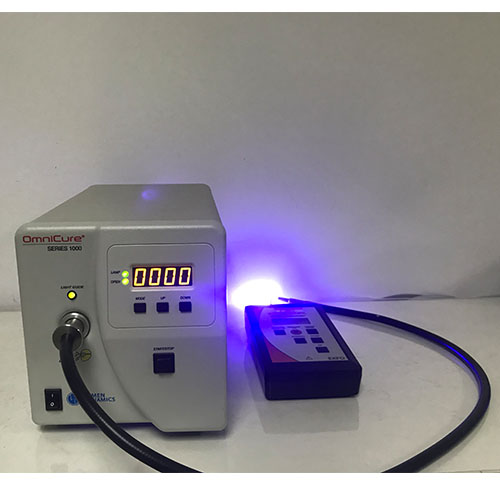

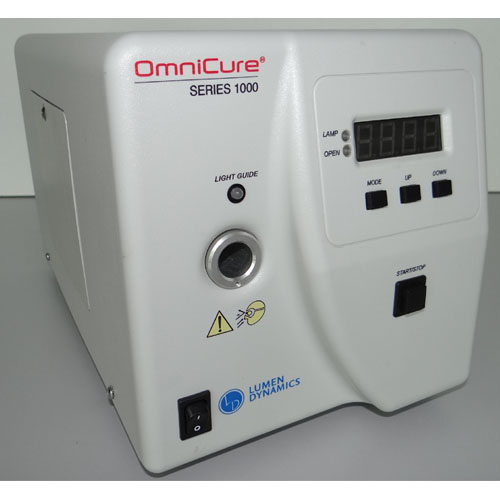

Lumen Dynamics S1000-IB with 806-00013 High Power Fiber Light Guide

Manufacturer:

Lumen Dynamics

Model:

S1000-IB

Condition:

Used

Availability:

1 unit

Price:

$2,000.00

Qty:

Description:

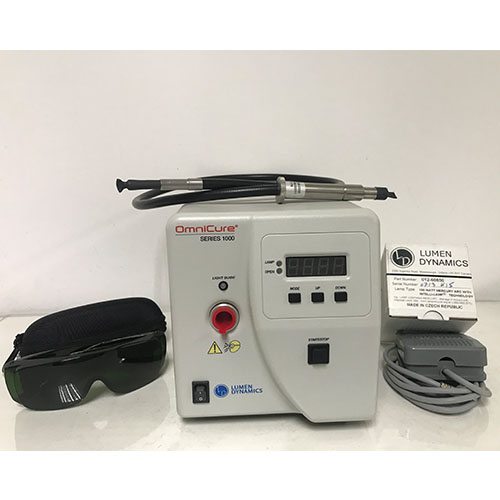

98% new. Including：S1000-IB with 320-500nm filter,New 012-60850 lamp, 806-00013 fiber light guide, UV Glasses,Foot pedal,Power cord, manual, 90 days warranty.

Feature

THE OMNICURE® SERIES 1000 PROVIDES EXCELLENT VERSATALITY IN A COST EFFECTIVE SYSTEM

● 100W lamp with up to 18W/cm2 of output

● Intelli-Lamp® technology to cool and monitor the lamp for extended lamp

life (typically 2000 hours) and optimize performance

● Automatic lamp striking with hot strike prevention that will protect lamp life

● Adjustable light output in 1% increments for precise control

● Selectable bandpass filters to customize light wavelengths for specific
applications

● Easy to use finger touch controls with LED display

THE OMNICURE® ADVANTAGE IN SPOT CURING SYSTEMS

The OmniCure® Series 1000, the first model in the OmniCure® Platform, provides excellent versatility in a cost effective system. Ideal for manual applications, this system contains many features previously found only in higher priced curing systems.

Easy to Use

Finger touch controls, a bright orange LED display,process indicators and automatic lamp striking make the OmniCure® Series 1000 simple to use. New snap-in lamp insertion and low noise fan improves ongoing operation.

Intelligent

The OmniCure® Series 1000 includes many built-in features such as: an adjustable iris; patented Intelli-Lamp® technology; bandpass filters; process alarms;and, password protection which are normally found only in higher priced curing systems.

Versatile

The OmniCure® Series 1000 includes a powerful100W lamp providing high intensity curing and over

2000 hours of lamp life. The broad spectral output makes it ideal for a wide range of applications, while the adjustable iris and selectable bandpass filters allow you to control the light for your specific application.

Adjustable Iris

The adjustable iris allows you to select very precise irradiance levels for your curing application. The iris setting is adjustable in 1% increments with a very linear relationship between the iris position and the output irradiance.

Radiometer Control

For even greater control, combine your OmniCure® Series 1000 with the R2000 Radiometer to adjust the output to specific irradiance values.

FEATURES:	BENEFITS:
100W lamp up to 18W/cm2 of output	Versatility: Delivers the intensity required for a broad range of applications; ideal for use with multi-legged light guides
Long lamp life - 2000 hours (typical)	Lower operating costs
Iris adjustments in 1% increments	Select the specific output intensity required
Advanced shutter/iris wheel	Tested to over 6 million activations for increased reliability
Intelli-Lamp® technology	Maintains optimum operating conditions, stable lamp output,longer lamp life, accumulated lamp hours
Finger touch control panel with LED display	Easy to use
Selectable bandpass filters	Customize the light wavelengths for your application
Shutter, lamp and light guide alarms	Confirms process: ensures repeatability and quality control
Hot strike prevention	Protects lamp life
Password protection	Protects settings for ensured repeatability
Foot pedal (standard)	Convenient hands free operation
Low-noise fan	Quiet operation in the workplace
CE marked; certified to IEC, Canadian and US standards	Ready for use worldwide
Small footprint	Ideal for bench top use and small workstations

Details

EXPANDING YOUR OPTIONS
Light Delivery

The OmniCure® Series 1000 is ideal for use with multi-legged High Power Fiber Light Guides to cure multiple sites with a single light source. EXFO also offers single-legged, liquid-filled or Quartz fiber light guides to suit most customer needs. Our full line of optical accessories will meet virtually any assembly challenge. EXFO welcomes custom requests for unique light delivery requirements.

Flexible Spectral Output

The broad spectral output makes the OmniCure® Series 1000 ideal for a wide range of applications. Selectable bandpass filters allow you to customize the light for your specific application.

Filter Typical Irradiance Output*

320- 500nm 18,500mW/cm2

320-390nm 8,500mW/cm2

365nm 5,300mW/cm2

400-500nm 6,500mW/cm2

250-450nm** 20,750mW/cm2

250-600nm** 24,750mW/cm2

* Measurements taken with a scanning radiometer: calibration traceable to NIST

** Blank Filter; must use fiber or extended range light guide

SPECIFICATIONS

DESCRIPTION

Lamp

High Pressure 100 Watt Mercury Vapor Short Arc

Lamp Life

2000 hours (typical)

Available Filters

Standard: 320-500nm

Optional: 250-450nm*, 365nm, 320-390nm, 400-500nm, 250-600nm*

Panel Controls

Power On/Off, Display Mode, Adjust UP/DOWN, START/STOP, lock/unlock

Panel Displays

Accumulated Lamp Usage, Exposure Time (0.2 – 999.9sec), iris setting (0–100%) lamp on, shutter open, light guide inserted, shutter/lamp error, lamp warm-up

Warm-up Period

90 seconds (typical)

Power In

100-120VAC / 200-240VAC, 50/60Hz

Power Supply

High efficiency, switch mode, line isolated

GENERAL SPECIFICATIONS

Dimensions (LxWxH)

13.3” x 7.1” x 7.9” / 33.8cm x 18.0cm x 20.1cm

Weight

9.9lbs (4.5kg)

Includes

Lamp Module, Selected Filter (installed), Protective Eyewear, Grounded and Shielded Power Cord, Foot Pedal, Manual

* Blank Filter; must be used with fiber or extended range light guide
