Home UV Curing System >> UV Light Sources >> Excelitas Omnicure S2000-XLA UV Spot Curing System
UV Light Sources

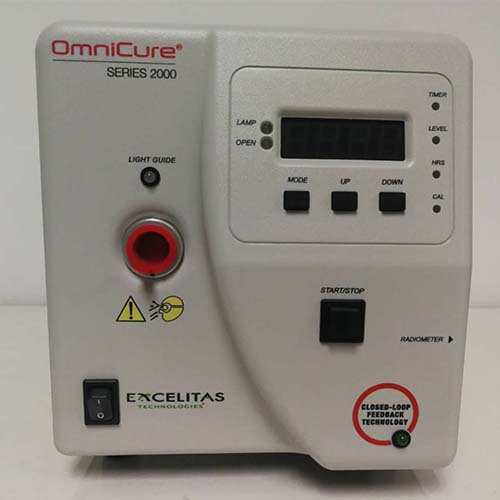

Excelitas Omnicure S2000-XLA UV Spot Curing System
Manufacturer:
  Excelitas
Model:
  S2000-XLA
Condition:
  New
Availability:
  1 Unit
Price:
  $5,000.00
Qty:
Description:
Including: S2000 mainframe, New 012-64000R UV bulb,320-500nm filters, power cord, foot pedal,UV Glasses, CD manual.

   Feature
THE OMNICURE® SERIES 2000 UV/VISIBLE SPOT CURING SYSTEM IS THE MOST INTELLIGENT SYSTEM OF ITS KIND
● 200W lamp technology with up to 30W/cm2 of output and a guaranteed life of
2000 hours, lowering operating costs
● Intelli-Lamp® technology will cool the lamp and extend lamp life while monitoring
accumulated lamp hours
● Closed-Loop Feedback technology automatically maintains exposure levels
for repeatable cures, ultimately controlling even the most advanced assembly
process
● Optional R2000 Radiometer can be combined to calibrate and set absolute
irradiance levels wirelessly from a single reference point

2000 Hour Lamp Life Guaranteed
The OmniCure® Series 2000 includes a new 200W lamp for plenty of power, with a guaranteed life of 2000 hours to lower cost of operation. Intelli-Lamp® technology automatically maintains the lamp hours directly on the lamp so no extra effort is required to activate lamp warranty.
Repeatability
The OmniCure® Series 2000 features EXFO’s Closed-Loop Feedback technology to continuously monitor the light at the source and automatically make adjustments to maintain the user selected set point. This ensures the required output level is maintained for every cure.
Radiometer Control
Combine your OmniCure® Series 2000 with the new R2000 Radiometer to calibrate and set specific irradiance values on your curing system. The handheld radiometer allows you to calibrate multiple curing systems from the same radiometer through wireless or serial communication.
Automation
The OmniCure® Series 2000 is ideal for automated processes. The curing system can be programmed and controlled externally from a PLC using the 15-pin I/O ports or directly from a PC via serial communication. PC software and commands are included with the system. External
devices are available for networking multiple systems.
Tack-Free Surface Curing of Acrylics

A special version of the OmniCure® Series 2000 system is available specifically for surface curing acrylic and methacrylic adhesives. This exclusive lamp technology promotes a smooth, tack-free surface finish without the need for an inert atmosphere during cure, or post-curing at elevated temperatures.

   Details
FEATURES:
BENEFITS:
200W lamp with up to 30W/cm2 of output
Versatility: Delivers the intensity required for a broad range of applications; ideal for use with multi-legged Light Guides
Long lamp life - 2000 hours guaranteed
Lower operating costs
Special lamp technology for acrylic adhesives
Tack-free surface curing of acrylics
Closed-Loop Feedback technology
Automatically maintains a constant output for a repeatable curing process
Optional radiometer control with R2000 Radiometer
Calibrate and program the curing system in W/cm2
Iris adjustments in 1% increments
Precisely control the output irradiance for your curing application
Intelli-Lamp® technology
Maintains optimum operating conditions, stable lamp output,longer lamp life, accumulated lamp hours
RS232 communication including PC software and commands
Program and control the curing system from a PC or integrate an automated system
Remote operation from 15 pin I/O ports
PLC control of the curing system
Timer synchronization input
Calibrate the system timer for process validation
Selectable bandpass filters
Customize the light wavelengths for your application
Shutter, lamp and light guide alarms
Confirms process; ensures repeatability
Hot strike prevention
Protects lamp life
Password protection
Protects settings for ensured repeatability
Low noise fan
Quiet operation in the workplace
CE marked; certified to IEC, Canadian and US standards
Ready for use worldwide
EXPANDING YOUR OPTIONS
Light Delivery
The OmniCure® Series 2000 is ideal for use with multi-legged High Power Fiber Light Guides to cure multiple sites with a single light source. EXFO also offers single-legged, liquid-filled or fiber Light Guides to suit most customer needs.
Flexible Spectral Output
The broad spectral output makes the OmniCure® Series 2000 ideal for a wide range of applications. Selectable bandpass filters allow you to customize the light for your specific application.
320-500nm 320-390nm 365nm
400-500nm 250-450nm* 250-600nm*
* Blank filter; must Use Fiber or Extended Range Light Guide
SPECIFICATIONS
DESCRIPTION
Lamp
High Pressure 200 Watt Mercury Vapor Short Arc
Lamp Life
2000 hours (guaranteed)
Available Filters
Standard: 320-500nm
Optional: 250-450nm*, 365nm, 320-390nm, 400-500nm, 250-600nm*
Panel Controls
Power On/Off, Display Mode, Adjust UP/DOWN, START/STOP, lock/unlock
Panel Displays
Accumulated Lamp Usage, Exposure Time (0.2 – 999.9sec), iris setting
(0–100%) / irradiance level 0.2W/cm2 – 40W/cm2), lamp on, shutter open,
calibrated, light guide inserted, shutter/lamp error, lamp warm-up
Warm-up Period
4 minutes (typical)
Power In
100-120VAC / 200-240VAC, 50/60Hz
Power Supply
High efficiency, switch mode, line isolated
GENERAL SPECIFICATIONS
Dimensions (LxWxH)
13.3” x 7.1” x 7.9” / 33.8cm x 18.0cm x 20.1cm
Weight
9.9lbs (4.5kg)
Includes
Lamp Module, Selected Filter (installed), Protective Eyewear, Grounded and Shielded Power Cord, Foot Pedal, Manual
WARRANTY
1 year (excluding Lamp and Light Guide)
>* Blank filter; must be used with fiber or extended range light guide
