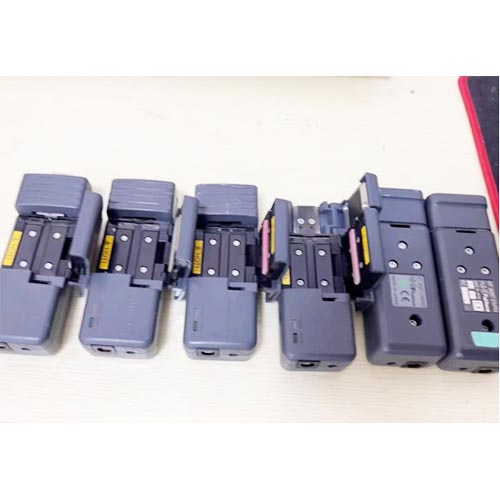

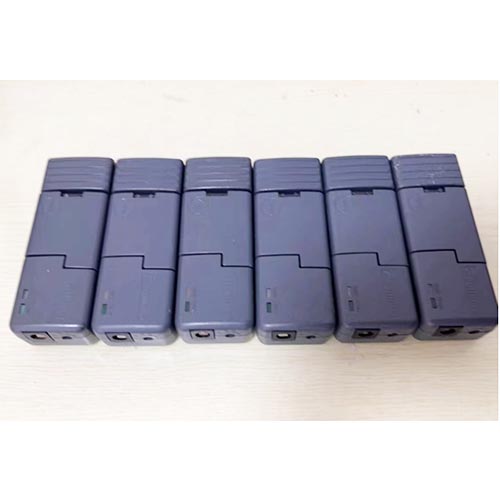

The HJS-02 is designed for stripping of fiber ribbon with up to 12 fibers all together. In order to achieve this, the HJS-02 is equipped with a heater, which soften the coating of the fiber ribbon for smooth stripping. SPECIFICATIONS： Applicable Fiber Count 1 to 12 Fiber Ribbon Ribbon Thickness 250 μm to 400 μm Coating / Cladding diameter 250 / 125 um Stripping Length 35 mm maximum Typical Heating Time 3 second Normal Mode 8 second Power Save Mode Standard Heating Temperature 100℃ Dimensions (W x D x H) 107 mm x 40 mm x 29 mm Weight 195 g Power Supply 12V DC Fiber Holder FH-50, FH-60,FH-70,FH-40,FH-100 series
STANDARD PACKAGE
