--Handheld Power Meter--OPM-300 Series Handheld Optical Power Meter

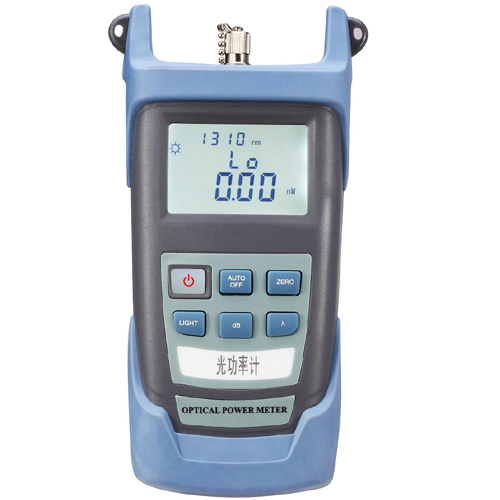

OPM-300 Series Handheld Optical Power Meter

Manufacturer:

Opticseq

Model:

OPM-300

Condition:

Brand New

Availability:

1000 pcs

Price:

$150.00

Qty:

Description:

Feature

OPM-300 Series Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the OPM-300 has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with OLS-300 Series handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.

Features

● Wave ID Auto wavelength identification & switching
● Frequency ID ---Auto frequency identification
● 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
● Intelligent backlight
● 1000 records storage or download via USB cable
● USB communication port for saved testing records download
● Reference power level can be set up and stored
● User self-calibrating function
● Auto-off function
● Up to 240hrs battery life

Details

Specifications

Model	OPM-300A	OPM-300B
Calibration Wavelength(nm)	800~1700
Detector type	InGaAs
Measurement Range(dBm)	-70+10	-50+26
Uncertainty (dB)	+0.2(5%)
linearity (dB)	0.01
Display resolution(dB)	0.03
Frequency ID Hz	270 330 1K 2K
Wave ID nm	850,980,1300,1310,1490,1550,1625
Date Storage Capacity	1000
Communication Port	USB
Connector	FC/SC/ST Interchangeable
Alkaline battery	3AAA 1.5V or Li battery (9V)
Power Adapter(V)	8.4
Battery Operating time (h)	240 without backlight
Operation Temperature(^oC)	-10(^oC) +60
Storage Temperature(^oC)	-25(^oC)+70
Dimension(mm)	1728233
Weight(g)	310

Standard Packages

MODEL	INCLUDES
OPM-300 Models	OPM-300 Series Optical Power Meter, 3pcs 1.5V Batteries, Power Adapter, User Manual, USB cable, Cotton Stick and Soft Carrying Case.
