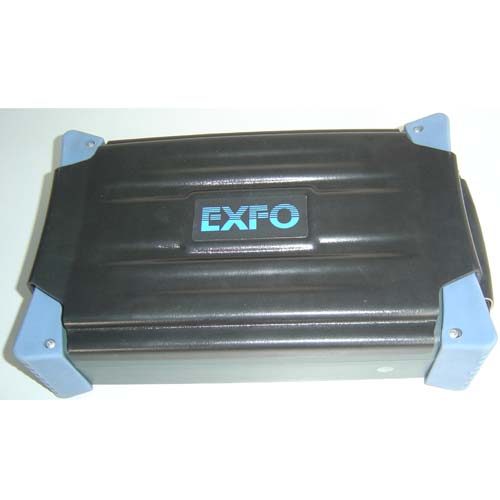

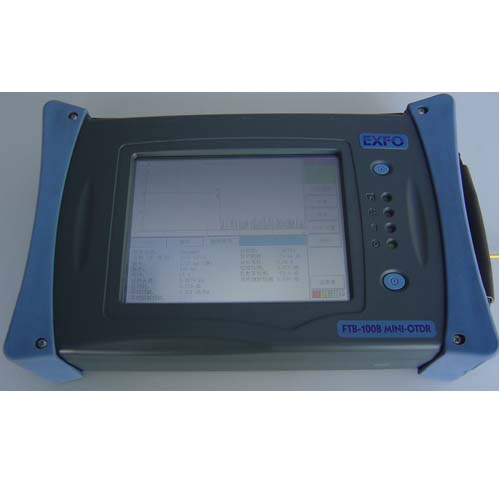

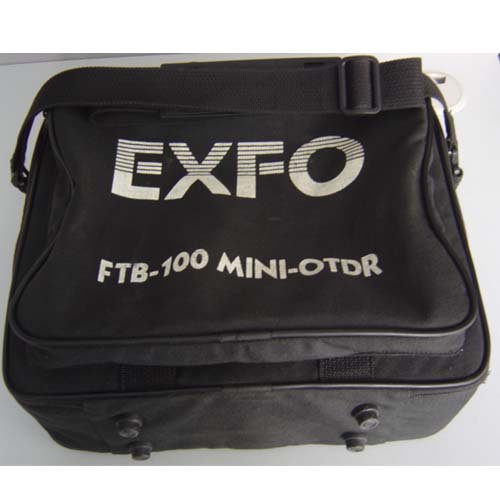

--VEEX--EXFO FTB-100B with FTB-7323B-B SM Mini OTDR

EXFO FTB-100B with FTB-7323B-B SM Mini OTDR

Manufacturer:

EXFO

Model:

FTB-100

Condition:

Used

Availability:

Price:

$1,500.00

Qty:

Description:

Feature

EXFO offers a variety of singlemode OTDR modules at four essential wavelengths—1310 nm, 1550 nm, 1625 nm, and 1410 nm—to cover all fiber applications from long-haul and WDM to metropolitan networks. The FTB-100B is also ideal for LAN applications because it can host multimode OTDR modules.

EXFO’s OTDR modules offer an impressive dynamic range with short dead zones to meet today's stringent network test requirements. OTDR modules perform rapid acquisitions with low noise levels enabling accurate low-loss splice location. An OTDR trace,consisting of up to 52 000 points, provides a sampling resolution as small as 8 cm. This unmatched sampling capability produces optimal resolution for even the longest distances. Each OTDR module provides a stable light source, a power meter, as well as the option to add a visual fault locator.

Key Features:

● Monochrome or color touchscreen

● Integrated power meter

● Internal memory of 700 traces

● Additional storage capacity of up to 6000 traces

● Standard floppy drive and PCMCIA port

● Over eight hours battery operating time

Details

FTB-100 Mini-OTDR Specifications

Processor	Intel StrongArm, 206 MHz
Interfaces	Serial RS-232C Parallel printer
External	Keyboard PS/2 PCMCIA Type II
Internal memory	32 MB total (700 traces typ. ), standard
Additional storage (optional)	PCMCIA flash cards, up to 6000 traces
Floppy drive	3.5 inch floppy drive, 1.44 MB
Display	Monochrome LCD touchscreen, 7.4 in, 640 x 480, transflective Color LCD touchscreen, (7.7 in), 640 x 480, 256 colors (optional)
Touchscreen	Resistive, 8 wires Positional accuracy better than 2 %, full scale, worst-case error < ± 0.5 cm (0.18 in) Resistant to most common chemicals2
External power supply	AC input: 100 to 240 V, 50 Hz to 60 Hz
Battery	Nickel metal-hydride (NiMH), rechargeable, smart (standard)
Battery operating time	8 h – NiMH battery
Recharge time	2.5 h (off), 8 h (on)
Size (H x W x D)	21.6 cm x 33.6 cm x 8.9 cm
Weight	3.7 kg
Operating temperature	−5 °C to 50 °C
Storage temperature	−40 °C to 60 °C
Relative humidity	0 to 95 % max. non-condensing

EXFO FTB-7323B-B Single-Dual-Wavelength module Specifications:

Wavelength: 1310/1550 ± 20
Dynamic range at 10 μs: 37.5/35.5dB
Dynamic range at 20 μs: 38.5/37.5dB
Event dead zone: 3/3m
Attenuation dead zone: 10/15m
