SPEC SHEET
FTB-1v2/FTB-1 Pro platform
EMPOWERING FRONTLINE TECHNICIANS

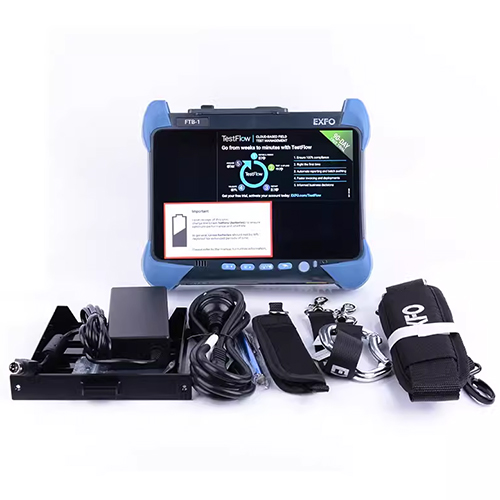

The FTB-1 version 2, available in a standard (FTB-1v2) or Pro (FTB-1 Pro) model, is a portable system designed for fast and powerful optical, Ethernet, time-division multiplexing (TDM) and multiservice applications.
KEY FEATURES
Connects anywhere: US8,mobile,WiFi,virtual private network (VPN) and Bluetooth* Loaded with utilities: equipped with all the tools needed to optimize field testing, plus any third-party applications
Like a PC: available with a dual- or quad-core processor and Windows operating system
EXFO Connect-ready: automated asset management, data goes through the coud and into a dynamic database
Reporting: market-leading onboard PDF reporting solution and essential PC-based post-processing included for all users
SPECIFICATIONS
FTB-1V2
FTB-1 PRO
Mainframe
Dual-core processor / 4 GB RAM/ Windows 10
Quad-core processor / 4 GB RAM/ Windows 10
Display
Touchscreen, color,1280* 800 TFT 203 mm (8 in)

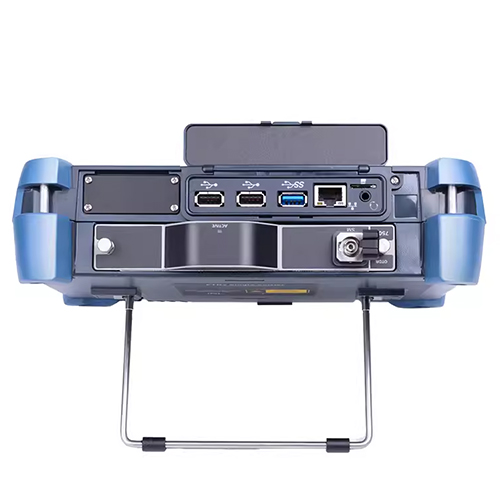

Interfaces
RJ45LAN 10/100/1000 Mbit/s USB 2.0 ports (2) USB 3.0 port (1) Mcro SD card shot 3.5mm headset/ microphone port
Storage (interal flash memory)
128GB
128 GB
Battery
Rechargeable Li-ion smart battery
Rechargeable Li-ion smart battery(Two battenes with the high power dual carrier)
Power supply
AC/DC adapter,input~100- 240V;50/60Hz 2.5A max, output: 24V;3.75A
AC/DC adapter,input~100- 240V;50/60Hz 2.5A max, output: 24V;3.75A With high-power dual carrier: 40A max outoutm24V833A AC/DC adapter,input: ~100-240V; 50/60Hz; 4.0A max, output: 24V;8.33A
GENERAL SPECIFICATIONS
Size (HxWx D)
With single depth module back / with single carrier With double depth module back / with dual carrier With high-power dual carrier
210mmx254mmx 66 mn 210mmmx254 mmx 96 mm 210 mm x254 mm x 122 mm
Weight (with battery)
With single carrier Wth dual carrier With high power dual carrier
1.5 kg 2.0 kg 2.4kg 3.2kg
Temperature
Operating 0℃ to 50℃ (32℉ to 122℉) Storage -40℃ to 70℃ (-40℉ to 158℉)
Retative humidity
0% to 95% non-condensing
BUILT-IN POWER MLTER SPECIFICATIONS(GeX) (optional)
Calibreted wavelengths (nm)
850,1300.1310.1490.1550.1625.1650
Optional CWDM calibrated
wavelengths (nm)
1270,1290.1310.1330.1350.1370. 1390 1410 1430 1450 1470.1490
1510.1530.1550.1570.1590.1610.1383 and 1625
Power range (dBm)
Typical 27 to-50
Uncertainty(%)
±5%±10nW
Displey resolution (dB)
0.01= max to-40 dBm
0.1= -40 dBm to -50dBm
VISUAL FAULT LOCATOR(VFL) (optional)
Laser, 650 nm ±10nm
CW/Modulate 1Hz
Typical Pout in 62.5/125um: -1.5dBm(0.7mW)
Laser safety: Class 2

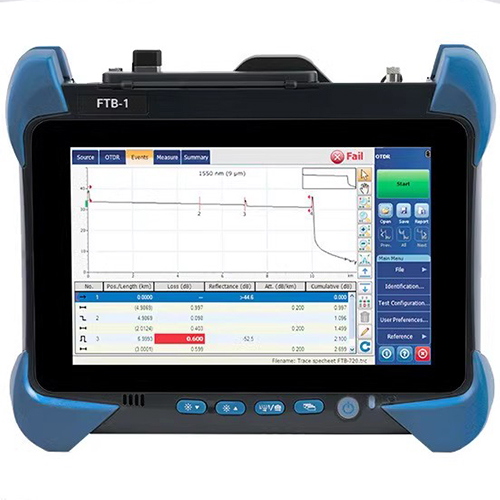

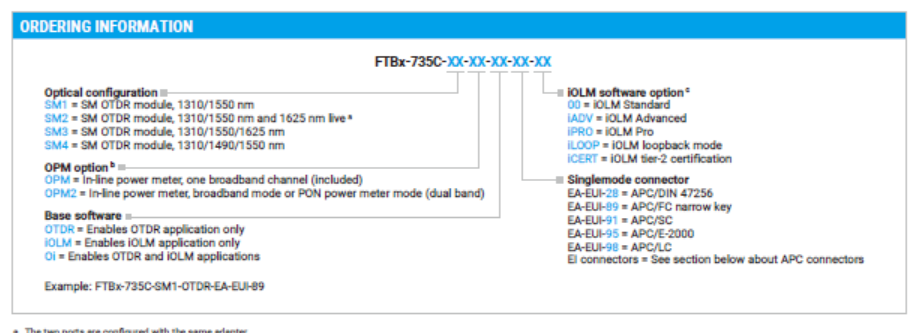

FTBx-730C PON FTTx/MDU OTDR FTBx-735C metro/PON FTTx/MDU OTDR
TECHNICAL SPECIFICATIONS
Model
FTBx-730C
FTBx-735C
Wavelength (nm)
1310 ± 20/1550±20/1625±10/1650±5
1310±20/1490±20/1550±20/1625±10
SM líve-port buílt-ín fílter
1650 nm: bandpass 1650 nm ± 7 nm
isolation >50dB out of 1650nm ± 10nm
1625 nm: híghpass >1595 nm ísolatíon >50dB from 1270nm to 1585nm
Dynamic range (dB)
39/38/39/39
42/41/41/41
Event dead zone (m)
0.5
Attenuation dead zone (m)
2.5
PON dead zone (m)
30
35
Distance range (km)
0.1 to 400
Pulse width (ns)
3 to 20 000
Linearity (dB/dB)
± 0.03
Loss threshold (dB)
0.01
Loss resolution (dB)
0.001
Sampling resolution (m)
0.04 to 10
Sampling points
Up to 256 000
Distance uncertainty (m)
± (0.75 + 0.0025 % x distance + sampling resolution)
Measurement time
User-defined (60 min. maximum)
Typical real-time refresh (Hz)
4
Stable source output power (dBm)
-2.5
Reflectance accuracy (dB)
± 2
TECHNICAL SPECIFICATIONS (In-line power meter)
Input power range (dBm)
1490 nm: –65 to 18 1550 or 1577 nm: –50 to 28
PON power meter (nm)
Two channels: 1490/1550
Broadband power meter (nm)
One channel: 1270 to 1625
Power uncertainty (dB)
±0.2
Calibrated wavelengths (nm)
1310, 1490, 1550 and 1625
PON power meter spectral band (nm)
1450 to 1530
Broadband power meter spectral band (nm)
1270 to 1625
PON power meter selectable wavelengths (nm)
1490, 1550, 1490/1550
Broadband power meter selectable wavelengths (nm)
1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490,1510, 1530, 1550, 1570, 1577, 1590, 1610,1625
Display resolution (dB)
0.1
PON power meter ORL (dB)
–55
Broadband power meter ORL (dB)
–50
Size (H x W x D)
158 mm x 24 mm x 174 mm (6 ¼ in x 15/16 in x 6 7/8 in)
Weight
0.4 kg (0.9 lb)
Operating 0℃ to 50℃ (32℉ to 122℉)
Storage–40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity
