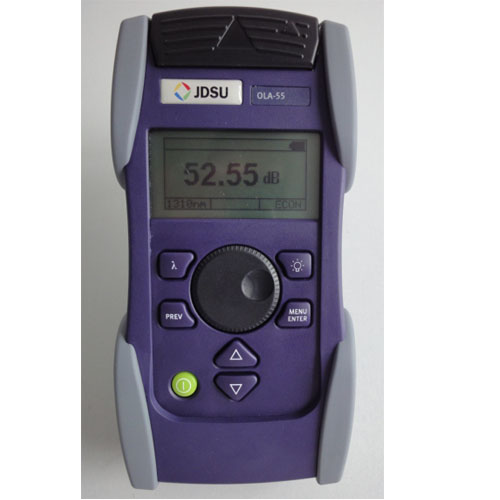

OLA-54
BN 2280/41 Multimode |
OLA-55
BN 2280/01 Singlemode
BN 2280/21 Singlemode APC |
Adjustable wavelength range |
750 to 1350 nm in 1 nm increments |
1260 to 1650 nm in 1nm increments |
Fiber type |
50/125 μm |
9/125 μm |
Calibrated wavelengths |
850 nm, 1300 nm |
1310 nm, 1550 nm, 1625 nm |
Display range |
<2.5 to 55 dB |
2.0 to 60 dB |
Minimum insertion loss |
<2.5 dB |
<2.0 dB |
Linearity |
± 0.2 |
± 0.2 |
Repeatability of attenuation setting |
± 0.1 dB |
± 0.1 dB |
Total attenuation accuracy |
typ. ± 0.8 dB |
± 0.8 dB |
Setting type |
Continuous over the entire range |
Continuous over the entire range |
Function |
Bi-directional |
Bi-directional |
Displayed value |
Absolute or relative attenuation value |
Absolute or relative attenuation value |
Max. permitted level |
+20 dBm |
+23 dBm |
General data
Display
Illuminated graphical display, resolution of 128 × 64 dots
Results displayed in dB
Backlight function switchable via a separate key
Connector
Optical connector interchangeable adapter from BN 2150/00.xx range is suitable for
measurements on flat or angled physical contact systems
Power supply
Four dry batteries Mignon/AA, 1.5 V or NiMH rechargeable cells Mignon/AA, 1.2 V
Operating time from dry batteries >300 h
Batteries/NiCd/NiMH power saving: The instrument switches off automatically after
~20 min (function can be disabled)
AC line operation via separate AC adapter
Integrated fast battery charging function (2 hours)
External 12 V DC operating via an AC adapter or a 12 V car battery adapter
Electromagnetic compatibility
Corresponds to IEC 61326 (CE conformance)
Calibration
Suggested calibration interval 3 years
Ambient temperature
Nominal range of use −10°C to +55°C
Storage and transport −40°C to +70°C
Dimensions and Weight
B × H × T approximately 95 × 60 × 195 mm (3.74 × 2.36 × 7.68 in)
Weight approximately 500 g (1.1 lb)
