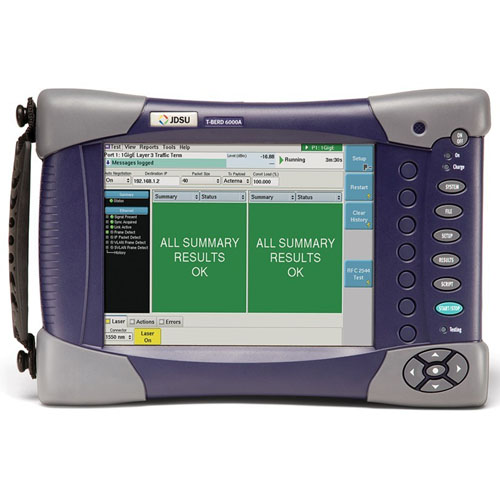

JDSU MTS-6000 +E8126B SM OTDR

Manufacturer:

JDSU

Model:

MTS-6000

Condition:

Availability:

Yes

Price:

$.00

Qty:

Description:

Feature

The MTS-6000 is a compact and lightweight test platform designed for the installation and maintenance of fiber networks. It offers field service technicians the highest levels of performance and upgradeability on the market. Modular in design, the MTS-6000 offers an extensive portfolio of test functionality, with over 40 different fiber modules supporting a wide range of applications, and is a single source for future fiber and photonic testing needs.

Key Features:
● Lightweight platform: only 2.4kg/5.3 lbs.
● Large 8.4 inch transreflective TFT color display improves viewing under any
conditions.
● Intuitive graphical user interface with touchscreen option.
● Extended battery life using smart Lithium ion cell.
●Connection checker with VFL, power meter, and Loss Test Set and video
inspection scope options.
● Built-in optical talkset option for communicating along the fiber.
● Unique automatic bi-directional analysis function available to save up to 50%
test time for OTDR, IL, and ORL measurements.
● Fast data transfer via USB, Ethernet port and 1Gb extended memory option.
● Comprehensive suite of PC software tools for post-processing of test results
with FiberTrace (OFS-100)12 and FiberCable (OFS-200)13.

Details

OTDR Modules

8100B

8100C

8100D

Central wavelength

1310/1550/1625 ±20nm

1310/1490/1550±20nm,
1625/1650±10nm

1310/1550±20nm,
1625±10nm,1650±1nm

Dynamic range

41/40/40dB

45/44.5/45/44/43 dB

50/50/50/48 dB

Pulse width

5 ns to 20 μs

2 ns to 20 μs

2 ns to 20 μs

Event dead zone

0.65 m

0.6 m

0.5 m

Attenuation dead zone

2 m

2 m

2 m

Splitter attenuation dead zone

25 m after a 15 dB splitter loss

25 m after a 15 dB splitter loss/60 m after a 18 dB splitter loss

15 m after a 15 dB splitter loss

Power meter

Calibrated wavelengths

1310/1490/1550/1625 nm

1310/1490/1550/1625 nm

1310/1490/1550/1625 nm

Power range

–3 to –55 dBm

–3 to –55 dBm

–5 to –55 dBm

Accuracy

±0.5 dB @–30 dBm

±0.5 dB @–30 dBm

±0.5 dB @–30 dBm

Continuous wave light source

Wavelengths

1310/1550/1625 nm

1310/1490/1550/1625 nm

1310/1550/1625nm

Output power

–3.5 dBm

–3.5 dBm

0 dBm

Stability

±0.1 dB @25°C over 1 hour

±0.1 dB @25°C over 1 hour

±0.1 dB @25°C over 1 hour

Operating modes

CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest

CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest

270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINtest

8100B Modules

Part Number Description

E8126B 1310/1550 nm OTDR module

E8136B 1310/1550/1625 nm OTDR module

8100C Modules

E8115C 1550 nm OTDR module1

E81162C In-service 1625 nm OTDR module1

E81165C In-service 1650 nm OTDR module1

E8126C 1310/1550 nm OTDR module

E8136C 1310/1550/1625 nm OTDR module
E8139C 1310/1490/1550 nm OTDR module

E8138C-65 1310/1550 and in-service 1650 nm

OTDR module

8100D Modules

E8115D 1550 nm OTDR module1

E81162D In-service 1625 nm OTDR module1

E81165D In-service 1650 nm OTDR module1

E8126D 1310/1550 nm OTDR module

E8129D-62 1550/1625 nm OTDR module1

E8136D 1310/1550/1625 nm OTDR module
