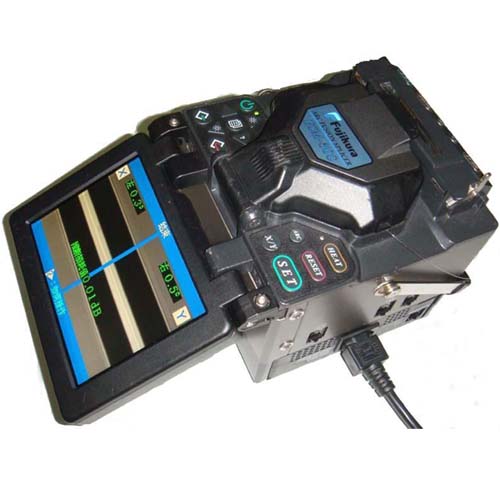

Fibre types |
Singlemode (ITU-T G.652), multimode (ITU-TG.651), dispersion shifted (ITU-T G.653), non-zero dispersion shifted (ITU-T G.655) |
Average Splice Loss |
0.02dB with G.652, 0.01dB with G.651 and 0.04dB with G.653 and G.655 |
Return Loss |
60dB or greater |
Fibre Coating |
100um to 1000um |
Fibre Cladding |
80um to 150um |
Fibre Cleave Length |
8 to 16mm with coating diameter of 250um or less. 16mm with coating diameter of 250um to 1000um |
Splice Protector Heater |
For all standard and micro splice protectors with protection sleeve centering device |
Atmospheric Compensation |
Automatic up to 3500 metres altitude with temperature and humidity compensation |
Proof Test |
1.96N (200gf) standard or 4.41N (450gf) option, mechanical proof test |
Fibre Viewing Method |
Dual CCD cameras and 5.6 inch TFT colour LCD monitor |
Magnification : |
295x for single X and Y views. 147x for X/Y view |
Splice Data Storage |
2000 splice data records |
Interface |
USB 1.1 for PC interface. RCA video jack |
Power Supply |
AC : 100 to 240V via AC adaptor ADC-11 |
DC Input |
10 to 15V via ADC-11 |
Detachable Battery Option |
BTR-06S, 4.5Ah, (equivalent splice/shrinks : 80) BTR-06L,9.0Ah, (equivalent splice/shrinks : 160) |
Dimensions (WxDxH) |
150mm x 150mm x 150mm |
Weight |
2.8kg including AC adaptor |
Operating Temperature |
-10 ℃ to +50 ℃ |
Storage Temperature |
-40 ℃ to +80 ℃ |
Operation Languages |
17 type of languages |
