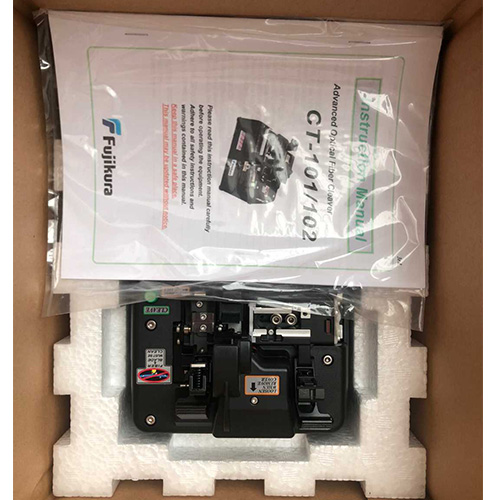

Model |
CT-101 |
CT-102 |
|
Applicable fibers |
Conventional silica single optical fiber
Cladding dia. : 0.08 to 0.250 mm
Coating dia. : 0.16 to 2.00 mm |
|
Cleave length |
3 to 40 mm |
|
Fiber Holder |
FH-100 series |
FH-60 series |
|
Performance of the cleaving angle |
Typical 0.30 degrees.（125 μm SMF） |
|
Range of the angle cleaving |
0 to 15 degrees（adjustable） |
|
Blade |
Material : Diamond
Life : 20,000 fibers（1,000 fibers × 20 points）（125 μm SMF） |
|
Dimensions |
140 W × 110 D × 95 H ［mm］ |
|
Weight |
900 g or less（batteries optional） |
|
Power source |
AC : 100 to 240 V（50 / 60 Hz）with ADC-16
DC : “AA” size battery 4pcs.（number of cleaving 1,000 fibers） |
|
Operating condition |
Temperature : 0 to 40 degC / Humidity : 0 to 95% RH（non-dew） |
|
Storage condition |
Temperature : -40 to 80 degC / Humidity : 0 to 95% RH（non-dew） |
