--光纤剥线钳热剥钳--Fujikura HTS-12高拉力光纤热剥钳

Fujikura HTS-12高拉力光纤热剥钳

品牌:

Fujikura

型号:

HTS-12

保修:

对于保修的详细信息联系我们

价格:

￥12,500.00

数量:

简介:

功能

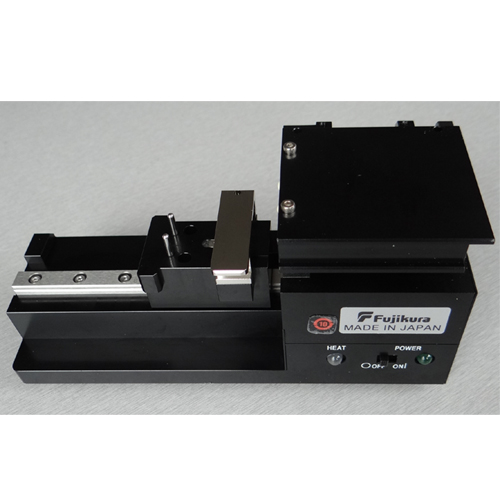

The HTS-12 is designed for stripping single count of silics optical fiber by keeping the stripped fiber’s glass surface free from any physical contact.

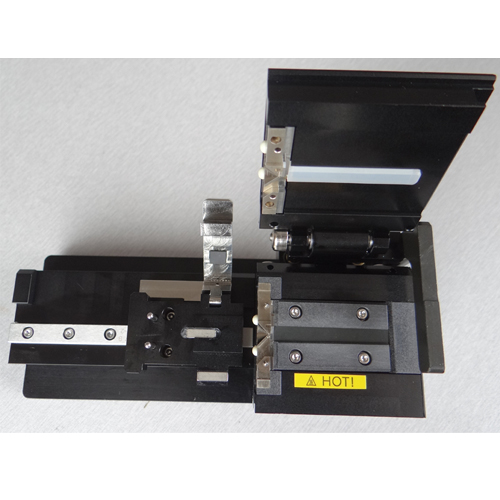

In order to achieve the above condition, the HTS-12 has a precise linear slide base for stripping cation.The fiber is not scuffed by the blade or any other materials when being stripped. The HTS-12 is equipped with a heater to soften the fiber coating.
The HTS-12 accepts the FH-40 series and FH-100 series Fiber Holder System.

Specifications
Fiber Count	Single
Fiber Type	Silica optical fiber
Coating material	UV cured resin
Cladding diameter	125um
Coating diameter	250um,400mm, with optional blade
Stripping length	Max. 35mm
Heating time	Approx. 3sec
Temperature setting	120,140,160,180 degrees C,adjustable
Fiber placing	With FH-40 series and FH-100 series Fiber Holder
Power supply	100 to 240V AC/ 50 to 60 Hz with ADC-08
Voltage polarity	Positive
Dimensions, Weight	140W x 60D x 60H mm,600g

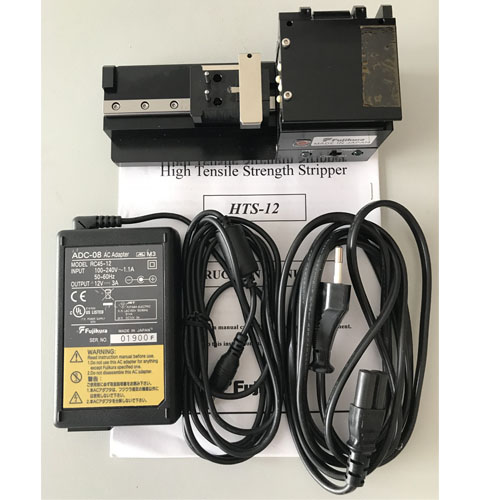

Include: HTS-12 Fiber Stripper, ADC-08 AC adapter,power cord,manual.
