Specifications:
Following specifications are preliminary. All efforts were made to accurately
specify the performance of this series of instruments at the time of publication,
please refer to our web site at www.newport.com under Light Test &
Measurement Instruments for updated specifications.
|
Max Rep Rate
( Photodiode Detectors - P-to-P Power) |
20 kHz |
|
Signal Sampling Rate |
250 kHz |
|
Current Sensitivity (full-scale) |
25 nA – 25 mA |
|
Power Range, Photodiodes |
100 pW - 40 W |
|
Resolution |
100 fA |
|
Signal-to-Noise, Current Mode (Photodiodes) |
100 dB, 5 Hz filter (typ) |
|
Bandwidth (-3 dB) (when using photodiode type detectors) |
DC to 180 kHz |
|
Data Storage Buffer (Internal) |
250,000 points |
|
Data Storage Buffer (External) |
User's USB Flash-Drive dependent |
|

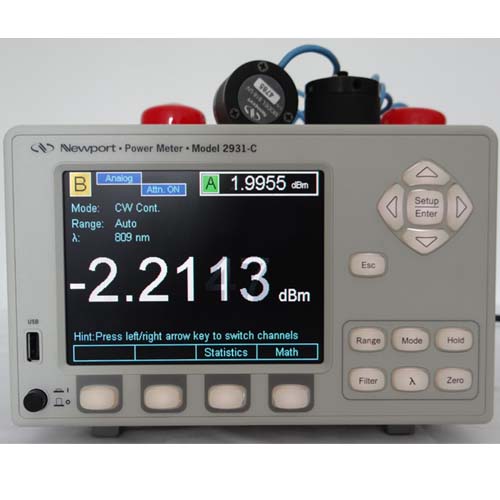

Display Type |
5.7” Graphical TFT LCD, 1⁄4 VGA |
|
Analog Output (User Selectable) |
0–0.5 V into 50W, 0–1 V into 1MW
0–1 V into 50W, 0–2 V into 1MW
0–2.5 V into 50W, 0–5 V into 1MW
0–10 V into 1MW |
|
DC Accuracy |
<±0.1% typical |
|
Peak-to-Peak Accuracy |
±1% typical |
|
Power Requirements |
90–240 VAC |
|
Weight [lb (kg)] |
11.3 (5.1) |
|
Dimensions (W x H x D) [in. (mm)] |
8.50 (216) x 5.25 (133) x 12.11 (308) |
|
Operating Temperature |
10°C to 40°C, <80% RH |
|
Storage Temperature |
-25°C to 60°C, <90% RH |
1) Instrument range is determined by detector used.
2) Specified using model number 818-ST-UV detector at 520 nm and attenuator.
User Detector Compatibility

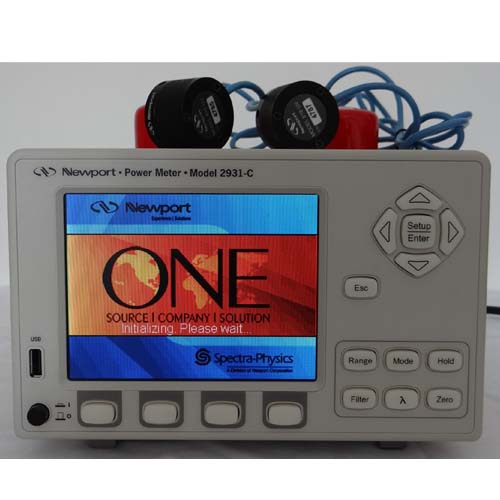

The 1931-C/2931-C Series Power Meters are compatible with Newport's new
918D, 918L and legacy 818 Series Low Power Detectors. When using an 818/CM
Series Low-Power Detector, a 841-DIN adapter is required for compatibility with

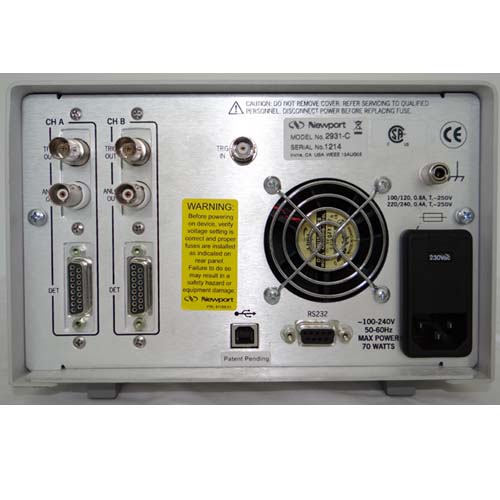

the DB-15 connector of the power meter. When using an 818 Series Low-Power
Detector, originally purchased without a calibration module, an 818-SCAL-OPT or
RCAL-10 calibration module is required for calibrated readings using the power
meter. Please contact a Photonics Application Support Engineer for
assistance with selecting the appropriate adapter.
